Bay Window Repair – Reinforcement
The structural integrity of a bay window is critical to your home’s overall health. These architectural features add aesthetic appeal and space but face unique stresses that can cause damage over time. Understanding these issues and knowing how to address them is key to preserving your home’s value & safety. This guide covers the essential aspects of bay window repair and reinforcement. Bay windows with their protruding design introduce complexities not found in simple flat windows. The outward thrust against the wall coupled with external weather forces and internal pressures creates a unique set of challenges. The larger glass area also means increased weight supported by a projecting structure.
Stress Points Above and Below the Window
The primary structural points of concern for a bay window are the areas above and below the unit. The header is the horizontal beam that supports the weight of the wall above the window opening and must be robust enough to carry the load. Improperly sized or installed headers can sag and cause stress on the surrounding structure. The sill or floor of the bay window and the supporting joists or foundation beneath it must be able to bear the weight of the window itself and any additional loads such as furniture or occupants within the bay. Rot or insect damage or inadequate support can compromise this area. Moisture Ingress and Its Consequences Moisture is a relentless adversary to any building material. For bay windows the potential entry points are numerous. Improper flashing or sealant failure around the perimeter or damaged external cladding can allow water to penetrate the structure. Once inside water can cause significant damage and then require bay window repair.
Rotting of Wood Components
Wooden frames & sills and supporting structures are particularly vulnerable to moisture. Rot can set in gradually & soften the wood and reduce its load-bearing capacity. This can manifest as soft spots or crumbling material or visible fungal growth. As wood decays it loses its strength like a tree weakened by disease.
Corrosion of Metal Fasteners
Metal screws and nails and brackets used in the construction of bay windows can corrode when exposed to moisture. Rust weakens these components & diminishes their ability to hold materials together. This can lead to loosening of joints or separation of components and ultimately structural compromise.
Damage to Surrounding Wall Materials
The impact of moisture extends beyond the immediate window structure. Water that penetrates the bay window can damage surrounding wall materials including drywall & plaster and insulation & sheathing. This can create a breeding ground for mold and mildew and impact indoor air quality and further degrade the building envelope.
Settlement and Foundation Issues
Homes can experience gradual settlement over time where the foundation shifts slightly. While minor settlement is normal significant movement can put undue stress on all parts of the house including bay windows. If the foundation supporting the bay window settles unevenly it can cause the window structure to warp or crack or become misaligned.
External Environmental Factors
Bay windows are directly exposed to the elements. Wind and rain & snow and ice all exert pressure on the structure. High winds can cause the window to flex and repeated exposure to freeze-thaw cycles can degrade materials and loosen seals. Ice buildup particularly in colder climates can add significant weight and stress. Recognizing the early warning signs of bay window damage is crucial. Proactive attention can prevent minor issues from escalating into major structural problems and save both time and money. Addressing damage when it’s a small crack is far simpler than dealing with a sagging bay.

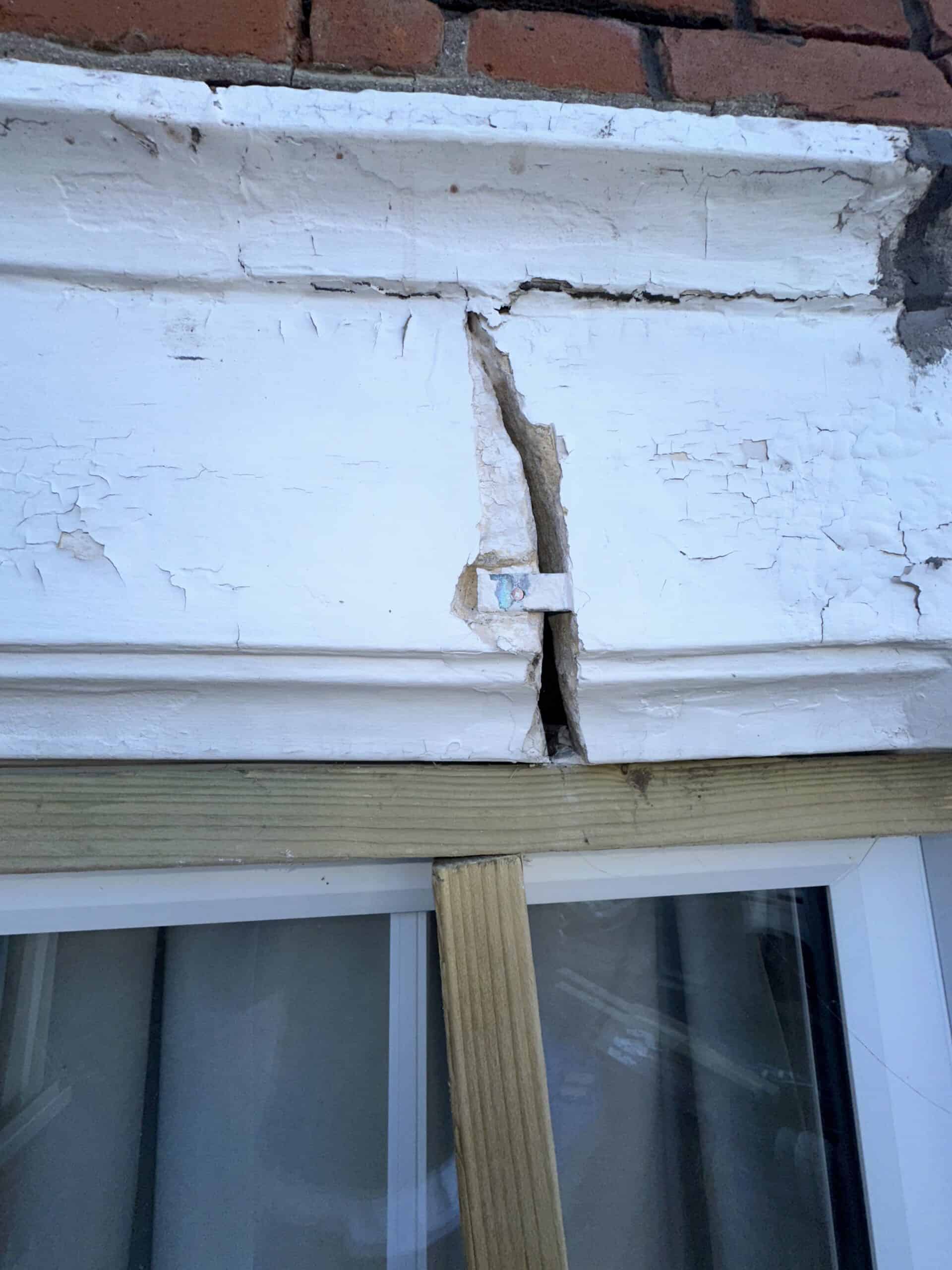

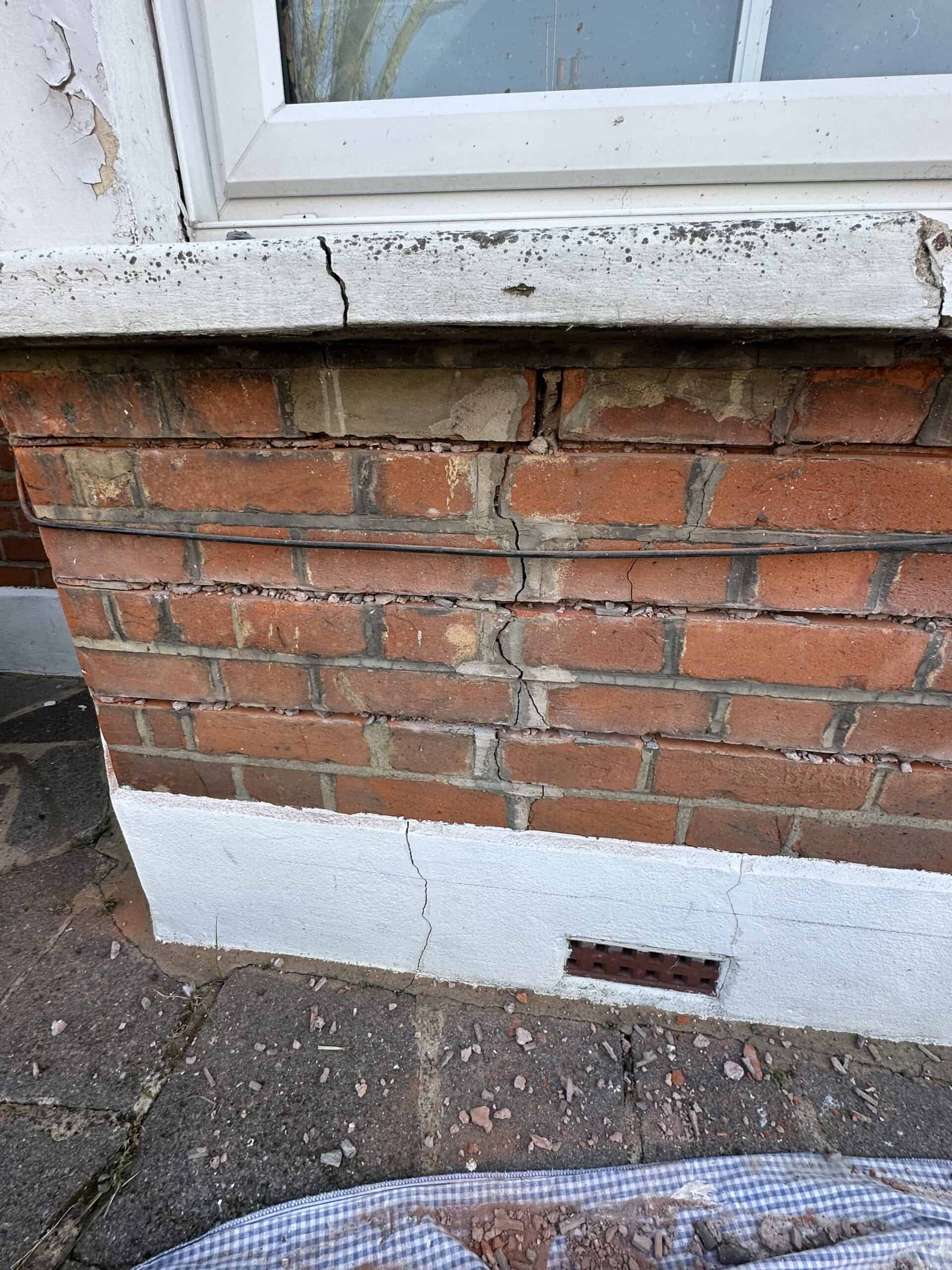

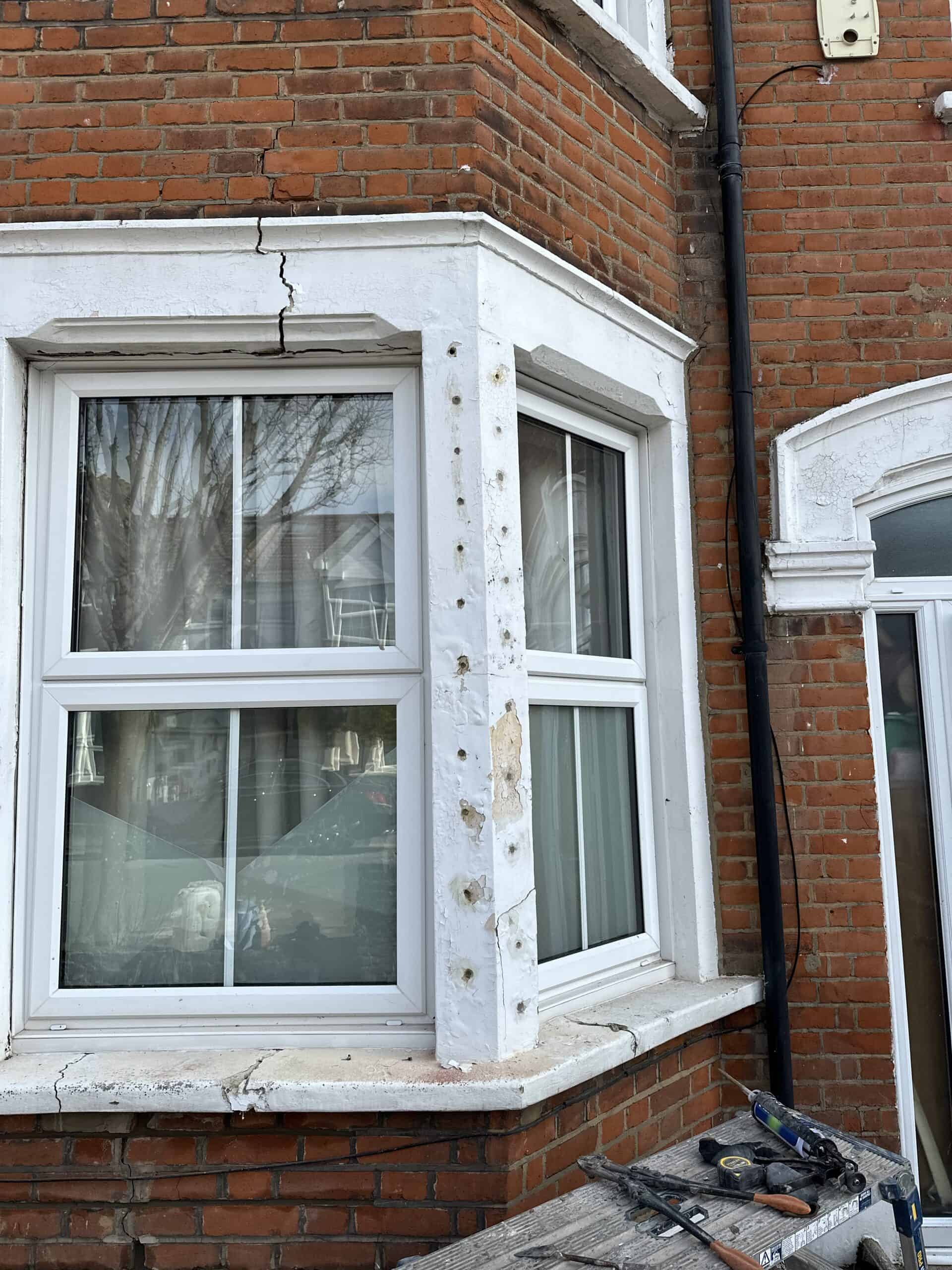

Visible Cracks and Gaps
The most obvious indicators of trouble are visible cracks in the wall surrounding the bay window or gaps appearing between the window frame & the wall. These can be signs of the structure settling or the outward pressure of the bay window exceeding the wall’s capacity. Cracks in the framing or sill are also cause for concern.
Sagging or Uneven Appearance
If the top of the bay window appears to be sagging or if the entire structure seems to be leaning or uneven it indicates a loss of support. This is a serious sign that the structural elements beneath or above the window are failing. An experienced observer might notice that the upper part of the window has dropped slightly like a tired shoulder.
Water Stains & Discoloration
Water stains on the interior walls or ceiling particularly around the bay window are a clear sign of a leak. Discoloration of the exterior siding or trim can also indicate water intrusion. These are symptoms of the underlying problem of moisture ingress.
Drafts and Air Leakage
An increase in drafts or cold air entering the room around the bay window suggests that the seals have failed or the structure has shifted.This creates gaps that affect comfort and shows the window no longer protects the interior properly from weather conditions.
Windows or Doors That Stick or Are Hard to Operate
When the sashes of your bay window or any doors in the bay structure start sticking or become hard to open and close it can mean the frame is warping from moisture damage or structural movement. The window frame has become stiff like a limb that has been in a cast for too long.
Growth of Mold or Mildew
Finding mold or mildew through a musty smell or visible dark spots means moisture is building up in or around the bay window structure. This shows there is a breach in the building envelope. Reinforcing a bay window is not just about appearance but is essential for maintaining your home’s structural integrity. A reinforced bay window works as a strong anchor that stops further damage and protects the entire house.
Stopping More Structural Damage
Reinforcement fixes the main causes of bay window problems like poor support or outward pressure. Strengthening the weak areas stops rot from spreading & prevents cracks and sagging from getting worse. It works like supporting a weak bridge to stop it from falling down.
Keeping Home Value
A bay window in good condition adds to your home’s appearance and overall value. Visible damage or structural problems can reduce your property’s appeal and worth. Spending money on reinforcement protects your property’s future value.
Making Sure It Is Safe
A damaged bay window can be dangerous. Sagging structures put stress on nearby walls and ceilings and could collapse. Water damage weakens materials & makes them unstable. Reinforcement keeps the bay window secure and stable.
Better Energy Efficiency
Bay windows that are sealed properly & structurally sound provide better insulation. Damage & structural problems often cause air leaks and poor insulation that increase heating and cooling costs. Reinforcement restores the seal and structural integrity for a more energy efficient home.
Defense Against Future Weather Problems
Reinforcement often means upgrading materials and construction methods to handle future weather and environmental challenges. This can include better sealants and stronger framing materials or improved flashing systems for greater protection from weather. Different methods can reinforce bay windows depending on the damage type & severity. These techniques redistribute weight & strengthen weak areas for long term stability.
Making the Supporting Structure Stronger
The foundation & framing under the bay window are most important.
Adding More Joists or Support Beams
If the floor joists under the bay window are too small or show rot then additional joists can be installed next to existing ones to increase their strength. In serious cases steel or engineered wood support beams may need to be installed under the bay. This is like adding more pillars to hold up a failing roof.
Foundation Repair or Underpinning
When foundation settlement causes bay window problems then foundation repair specialists may be needed. This could mean underpinning the foundation with new concrete piers or other structural repairs to stabilize the ground under the bay. Making the Header and Framing Stronger The structure above & around the window opening needs attention.
Installing Stronger Headers
If the existing header is weak or damaged it may need replacement with a stronger beam. This often means temporarily supporting the wall above the window while removing the old header and installing a new properly sized one. Laminated veneer lumber or steel headers are common upgrades.
Adding Structural Bracing
Diagonal bracing can be added to the framing inside the bay window structure to resist sideways forces and prevent shifting. This makes the entire bay rigid. These braces work like the internal skeleton of the bay & stop it from twisting.
Fixing or Replacing Rotted Wood
Any wood parts with rot must be fixed. This usually means cutting out rotted sections and replacing them with solid pressure treated lumber. For extensive rot larger framing sections may need replacement.
Better Weatherproofing and Sealing
Stopping future water damage is critical for reinforcement.
Advanced Flashing Techniques
Proper flashing is essential to direct water away from the window and surrounding wall. All Structure Upgrading to stronger flashing materials & making sure there is a continuous waterproof membrane around the bay window can stop leaks. Flashing works like an umbrella for the vulnerable edges of your window.
High-Performance Sealants and Caulking
Using quality durable sealants around the window frame perimeter & where different materials connect is essential. These sealants must stay flexible to handle movement and resist damage from UV rays and weather.
Exterior Cladding Repair or Replacement
Damage to exterior siding or trim or brickwork around the bay window can let water in. Repairing or replacing these parts helps with overall water management of the bay.
Interior Reinforcement & Aesthetics
While structural reinforcement comes first, interior repairs are often needed too.
Plasterboard and Plaster Repair
After fixing the underlying structural problems, interior drywall or plaster may need repair or replacement because of water damage or cracking.
Insulation and Vapor Barrier Restoration
Damage to the bay window structure can also harm insulation & vapor barriers. These should be fixed to keep energy efficiency and prevent moisture problems inside the wall cavity. While some small DIY repairs might work bay window reinforcement usually involves complex structural issues. Hiring a qualified professional is strongly recommended to make sure the work is done correctly and safely.
When to Call a Professional
If you see any signs of damage mentioned before, especially sagging or extensive cracking or evidence of rot it is time to get professional help. Trying major structural repairs without proper knowledge can cause more damage or create safety risks.
Choosing the Right Contractor
When looking for a contractor for bay window repair and reinforcement think about these factors:
Specialization in Window or Structural Work
Find contractors who focus on window replacement and repair or those with solid experience in structural carpentry and home renovation. A company that has worked with bay window systems will know more.
Experience and Reputation
Ask about their experience with similar projects. Look at online reviews or testimonials or request references from past clients. A contractor with a solid track record will likely deliver quality work.
Qualifications and Insurance
Make sure the contractor has proper licensing and insurance. This protects you from responsibility if accidents or damage happen during repairs.
Detailed Written Estimates
Get detailed written estimates from several contractors. The estimate should clearly list the work scope & materials and timeline and cost. Compare these estimates carefully.
Bay Window Repair Process
A professional approach to bay window repair usually includes:
Initial Inspection & Diagnosis
The contractor will do a complete inspection of the bay window and surrounding structure to find the exact cause and extent of damage.
Developing a Repair Plan
Based on what they find, the contractor will suggest a detailed repair plan including the methods & materials for reinforcement.
Executing the Repairs
The team will do the necessary structural work to reinforce the bay window and make any needed repairs to surrounding parts.
Final Inspection and Cleanup
After repairs are done, the contractor will do a final inspection to confirm the work meets quality standards. They will also clean up the work area.
Preventing Future Bay Window Damage Active maintenance & attention to detail work best against future bay window damage. Many problems come from preventable causes like neglect or poor upkeep.
Regular Inspections
Make it routine to visually check your bay window at least twice yearly, perhaps in spring & fall. Look for any new cracks or gaps or signs of wear in the sealant or discoloration on the exterior. A quick look can be as valuable as a routine checkup for your home.
Maintaining Sealants and Caulking
The seals around your bay window are its first defense against water. Check the caulking and sealant regularly. Over time these materials can crack or shrink or become brittle. Reapply or replace any worn sealant quickly.
Ensuring Proper Drainage Around the Bay
Make sure water drains away from the base of your bay window instead of pooling around it. Check that gutters and downspouts are clear and directing water away from the foundation. If landscaping slopes toward the house, consider changing it to create proper drainage.
Cleaning & Maintaining Exterior Surfaces
Keep the exterior surfaces of your bay window & surrounding cladding clean. Remove any debris that might hold moisture against the structure. Trim back any plants or trees growing too close to the window that could cause damage or trap moisture.
Addressing Minor Issues Promptly
Small problems should not be ignored. A tiny crack in the sealant or a piece of trim that has come slightly loose can turn into a major water damage issue if not fixed quickly. Take care of any problems as soon as you notice them.
Professional Inspections
It is a good idea to have a professional examine your bay window & its structure every few years. This is especially important if your home is older or if you live in an area that experiences harsh weather conditions. A trained professional can identify potential problems before they turn into serious issues. Think of it as taking your car in for regular maintenance to keep it running well. When you understand what can go wrong with bay windows and know how to spot damage early, you can take steps to strengthen them and maintain them properly. This approach will help ensure your bay window stays attractive and structurally solid for many years.
